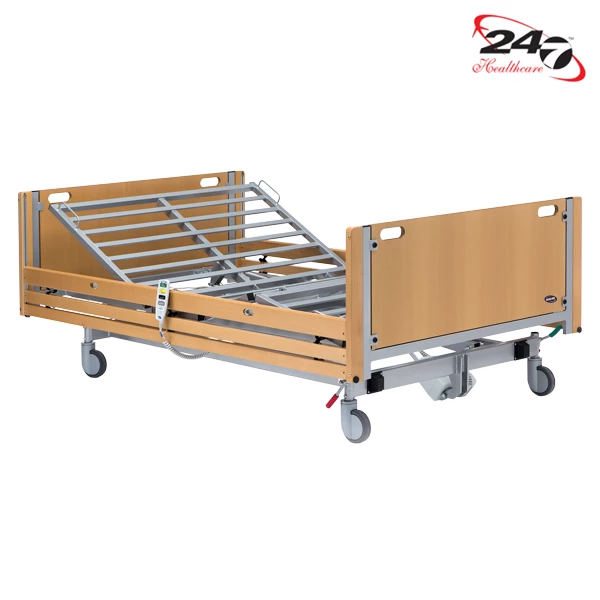

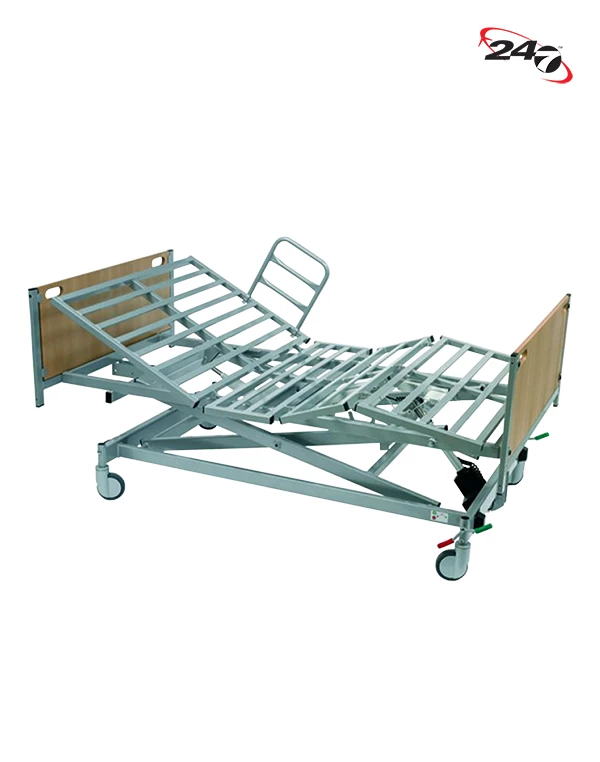

Octave Bariatric Profiling Bed

  • 385Kg user weight
  • Height adjustment
  • Bariatric solution
  • Extendable mattress platform
  • Lifting pole & handle included
  • Transport kit included


If you’re looking for a care bed that offers optimal comfort and support to its user, you may want to choose the Octave bed. The Octave comes with great features that provide comfort and care to bariatric clients. It has a fully electrical 4-section mattress support that provides the best comfort and support to the user.

With Octave, the carer is assured of an ideal working environment. The Octave bed is a substantial bed, its design includes all the well-known qualities of Scandinavian design.

Invacare Octave bariatric bed features & options

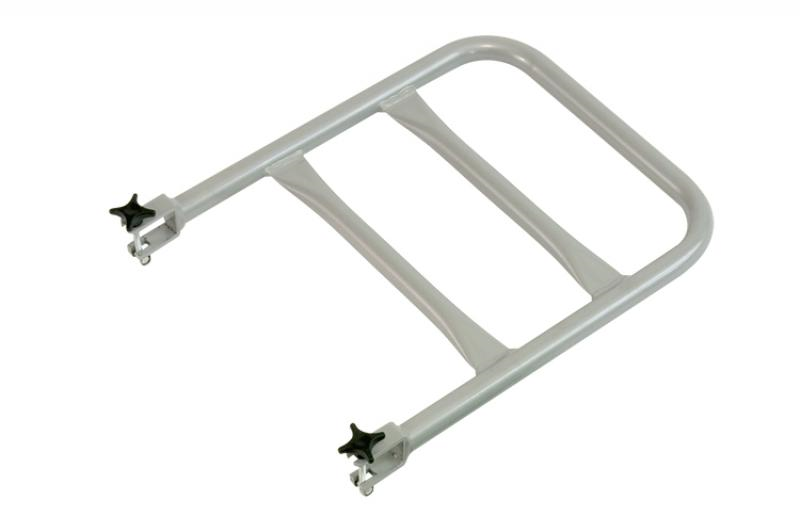

Medley ergo grab handle
Extendable bedend​
Octave bariatric profiling bed - lifting pole

Support handle

The included handle makes getting in and out of bed much easier for the patient.

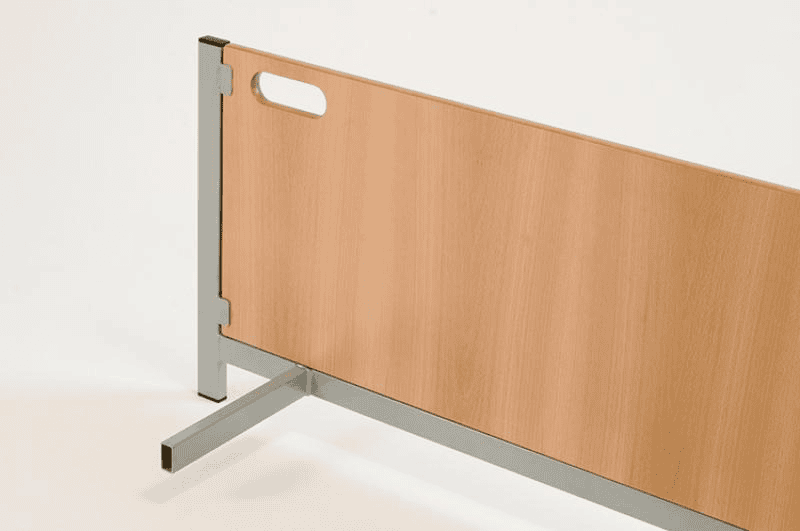

Extendable bedend

The bedend is extendable and offers flexibility. Choose between 10 cm to 20 cm extension.

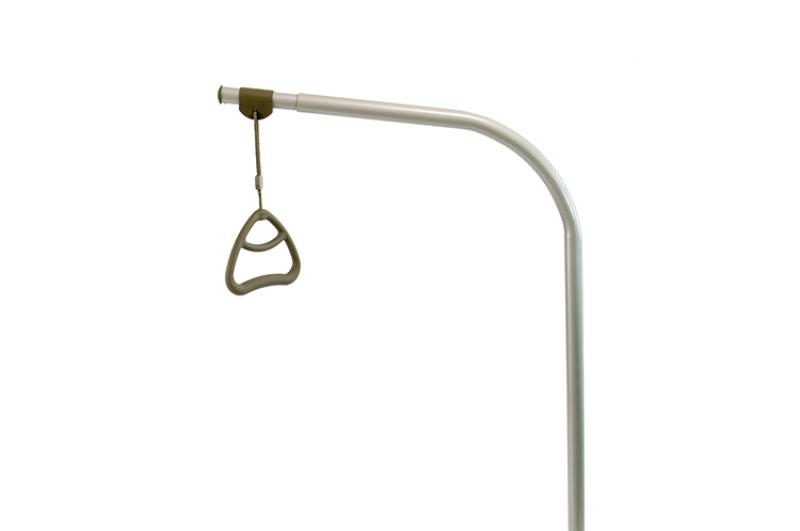

Lifting pole

The included handle can be adjusted in both height and depth.

The Octave has a safe working load of 385Kg, with a maximum user weight of 350Kg (allowing 35Kg for the mattress, pump and any additional options).

The Octave bariatric profiling bed mattress platform is wisely built to allow easier access to the client. The bed ends can be detached independently of the side rails for quick and easy access to both the head and feet. The bed also offers enhanced user support as the bed frame is extended to the edges of the bed base.

In terms of hand control, the Octave also stands out – it comes with an easy to use control. This allows the client to operate the bed height and profiling function effortlessly.

Extendable bed end

The Octave is equipped with an extendable bed end. This makes the bed end extendable while also offering flexibility. Users can choose between 10 cm to 20 cm extension.

The bed is built with high consideration on the need for convenience by the user. It comes with enhanced features that guarantee the user’s comfort.

Delivery and storage is also duly considered in the design; the bed is delivered on a transportation rack. With the transportation rack, it is easy to economise on storage space and makes it possible to move the bed easy between locations.

Octave bariatric profiling bed - lifting pole


Lifting pole: It has a lifting pole that makes the handle adjustable for both height and depth.



Octave bariatric profiling bed - grab handle


Support/grab handle: This feature makes getting in and out of bed much easier for the user.

What benefits can an adjustable bed height provide?

The capability to lower and raise the height of a bed can offer benefits to those who use the bed daily and their carers. Setting the bed to the correct height is particularly beneficial to those with limited mobility. This can help get in and out of bed, especially for those who can self-transfer into a wheelchair. The function can also be used to assist an individual in achieving a semi-standing position. Reducing the height of the bed can also offer increased security against falls due to the position of the bed is closer to the floor.

Some beds offer a shallow height, such as only 21cm, from the floor and, when used with a padded mat at the side of the bed, can offer more excellent protection from injury. For example, those prone to leaving their bed unexpectedly at night. Raising the height of the bed to an ergonomic height is particularly useful for carers as it allows them to care for their clients at a safe working height, therefore reducing their risk of back strain and associated injury.

Don’t hesitate to contact one of our team members to get a quote or advice.

Octave bariatric bed technical data


Outside: 1190 mm


Total height: 1720 – 2120 mm


Outside: 2210 mm Inside: 2070 mm Mattress: 2000 mm

Height adjustment

400 – 800 mm

Mattress support dimensions

810 – 340 – 330 – 520 mm

Backrest angle

0 – 57°

Thigh angle

0 – 30°

Legrest lift

0 – 30°

Max user weight

SWL 385 kg 350 kg

Total weight

170 kg

Frame colour & woodwork

Silver, Beech

Side rails models

Line and Britt V side rails

Additional information



Weight Limit

200 – 350kg


10cm Mattress Platform Extension, Lifting Pole, Lockable Hand Control, Side Rail Height Extenders, Side Rails, Support Handle
