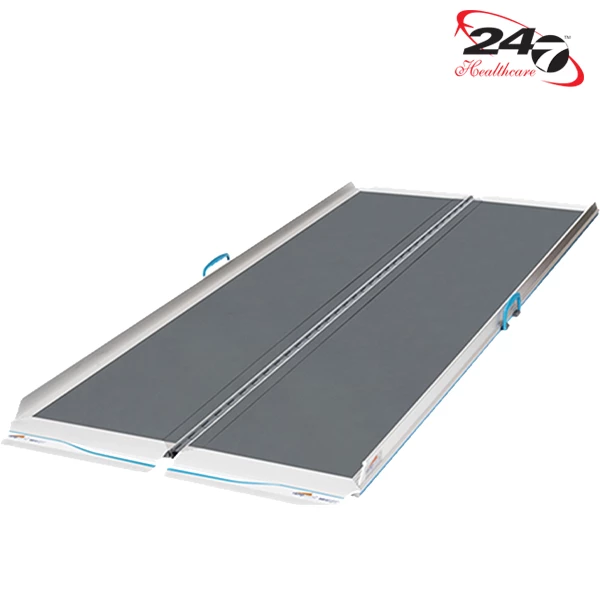

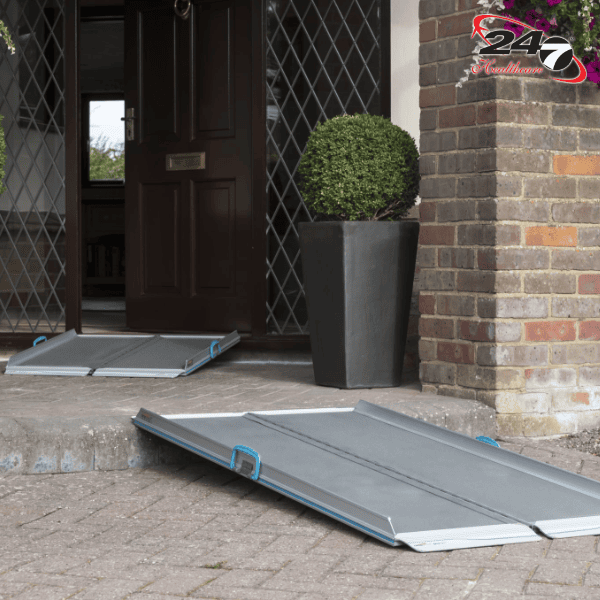

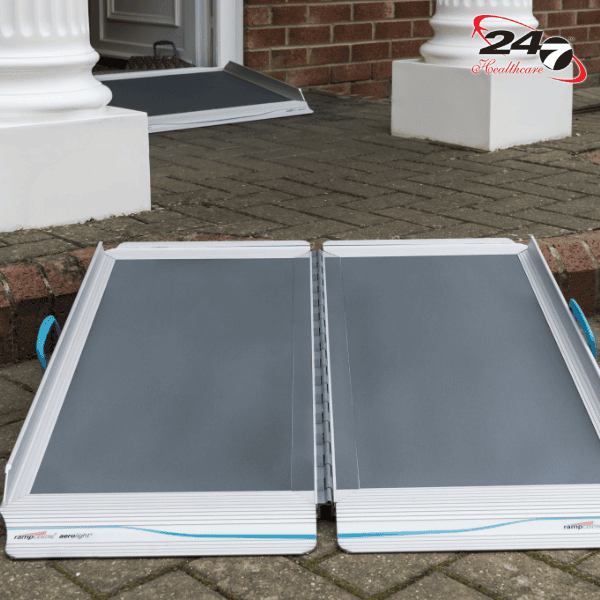

Our Xtra-Lite Portable “suitcase” Ramp is a lightweight, nevertheless remarkably strong ramp that is ideal for providing access to buildings. This is a foldable ramp that clips together to make carrying and storing more convenient.
The anti-slip grippy surface of the Xtra-Lite Portable Ramp helps users to come up and down safely, even in wet or icy conditions.
Quick and easy to deploy, the lightweight Xtra-Lite folding suitcase ramp is an all-around winner in real-life situations. The ramp folds lengthwise for transportation and includes an ergonomic fold-away handle for ease of transportation.
The load capacity for the Length-Fold Wheelchair Ramps ranges from 250Kg to 450Kg – depending on length.
Xtra-Lite "Suitcase" ramp video
Xtra-Lite "Suitcase" ramp range specifications
|Code||Length||Ramp Width*||Lip Width||Capacity||Weight||Stored Dimensions LxWxD|
|AX6||60cm (2′)||76cm (30″)||71.4cm (28.1″)||450kg (71st)||4.9kg (11lbs)||60 x 39 x 8cm|
|AX9||90cm (3′)||76cm (30″)||71.4cm (28.1″)||450kg (71st)||6.6kg (15lbs)||90 x 39 x 8cm|
|AX12||120cm (4′)||76cm (30″)||71.4cm (28.1″)||400kg (63st)||8.6kg (19lbs)||120 x 39 x 8cm|
|AX15||150cm (5′)||76cm (30″)||71.4cm (28.1″)||350kg (55st)||10.4kg (23lbs)||150 x 39 x 8cm|
|AX18||180cm (6′)||76cm (30″)||71.4cm (28.1″)||350kg (55st)||12.3kg (27lbs)||180 x 39 x 8cm|
|AX21||210cm (7′)||76cm (30″)||71.4cm (28.1″)||300kg (47st)||14.2kg (31lbs)||210 x 39 x 8cm|
|AX24||240cm (8′)||76cm (30″)||71.4cm (28.1″)||250kg (39st)||16kg (35lbs)||240 x 39 x 8cm|
* Ramp width excludes handles
Don’t hesitate to contact one of our team members to get a quote or advice.
Why choose a portable wheelchair ramp?
While there has been some improvement in the availability of access ramps in public buildings, there will be many occasions when a pedestrian, wheelchair or mobility scooter user finds it difficult to access a facility. One increasingly popular solution is the use of portable wheelchair ramps. These can be folded up and transported in a vehicle, providing a convenient way to maintain independence.
Although there are various types of portable wheelchair ramps out there, they come in two styles: double-track or single platform, although you will also find a range of threshold ramps that can be used in the home.
A portable ramp should be able to accommodate use by anyone using a powered wheelchair or a manual chair, as well as scooters and walkers, and both safety and functionality should be priorities when deciding whether to use
