Up & Over Portable Threshold Ramp Kit

  • 250-300Kg weight limit
  • Overcomes door thresholds
  • Includes Xtra-Lite ramp
  • Includes Doorline-Multi (DM5) ramp
  • Choice of main ramp lengths
  • Quick and easy to set up
  • Carrying handles
  • Non-slip grip surface


The Up & Over Portable Threshold Ramp kit comprises of an Extra-Lite Portable Ramp designed for access over any kerb or step and the innovative Doorline-Multi (DM5). The kit provides everything needed for access up to and over the a UPVC doorframe (and other types of threshold).

Our Xtra-Lite Portable “suitcase” Ramp is a lightweight, nevertheless remarkably strong ramp that is ideal for providing access to buildings. This is a foldable ramp that clips together to make carrying and storing more convenient.

The anti-slip grippy surface of the Xtra-Lite Portable Ramp helps users to come up and down safely, even in wet or icy conditions.

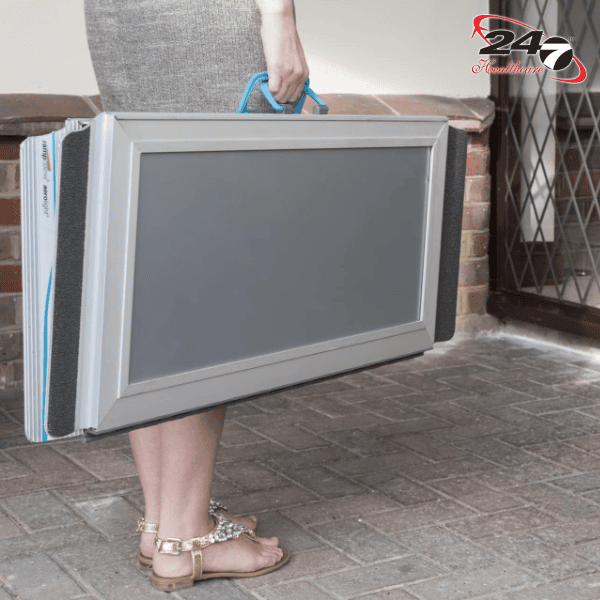

Quick and easy to deploy, the lightweight Xtra-Lite folding suitcase ramp is an all-around winner in real-life situations. The ramp folds lengthwise for transportation and includes an ergonomic fold-away handle for ease of transportation.

The load capacity for the Length-Fold Wheelchair Ramps ranges from 250Kg to 450Kg – depending on length.

Up & Over Portable Threshold Ramp Kit video

The Xtra-Lite Portable Ramp features:

  • Up to 300Kg weight capacity (depending on length)
  • Ramps are half as wide when folded
  • Quick and easy to set up
  • Available in multiple lengths
  • The unique design enables incredible grip
  • Aerospace technology ensures incredible strength
  • Contrasting colour edge strip increases visibility
  • Centre-mounted carrying handles
  • Non-slip grip surface
  • Easily overcomes door thresholds when combined with the Doorline-Multi ramp (DM-5)
  • All pictures shown are for illustration purposes only.
  • The actual product may vary due to product enhancement
  • These ramps are only suitable for use as mobility aids

Contact us if you require help, advice or more information.

Up & Over Portable Threshold Ramp Kit specifications

CodeIncludesExternal Ramp LengthMax height at 1:8Max recommended Internal Threshold HeightCapacity
UO121 x DM5, 1 x AX12120cm (4′)15cm (6″)10cm (4″)300kg (47st)
UO151 x DM5, 1 x AX15150cm (5′)19cm (7.5″)10cm (4″)300kg (47st)
UO181 x DM5, 1 x AX18180cm (6′)23cm (9″)10cm (4″)300kg (47st)
UO211 x DM5, 1 x AX21210cm (7′)26cm (10″)10cm (4″)300kg (47st)
UO241 x DM5, 1 x AX24240cm (8′)30cm (11.8″)10cm (4″)250kg (39st)

Why choose a wheelchair ramp?

While there has been some improvement in the availability of access ramps in public buildings, there will be many occasions when a wheelchair user finds it difficult to access a facility. One increasingly popular solution is the use of portable wheelchair ramps. These can be folded up and transported in a vehicle, providing a convenient way to maintain independence.

Although there are a variety of types of portable wheelchair ramps out there, essentially, they come in two styles: double-track or single platform, although you will also find a range of threshold ramps that can be used in the home.

A portable ramp should be able to accommodate use by anyone using a powered wheelchair or a manual chair, as well as scooters and walkers, and both safety and functionality.
