Astor Matira – Assisted bath & hoist system

  • Weight capacity of 150kg
  • Detachable seat
  • Integrated head support
  • Electronic mechanism
  • Battery backup
  • Hoist friendly

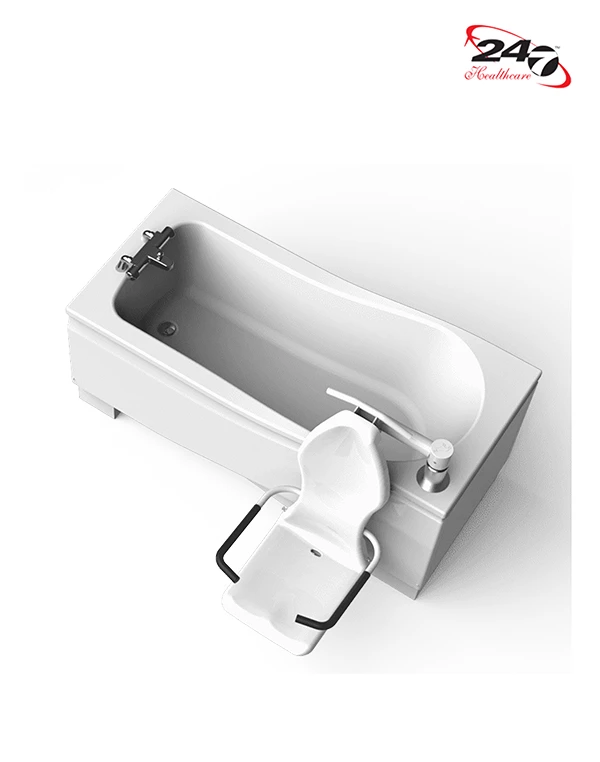

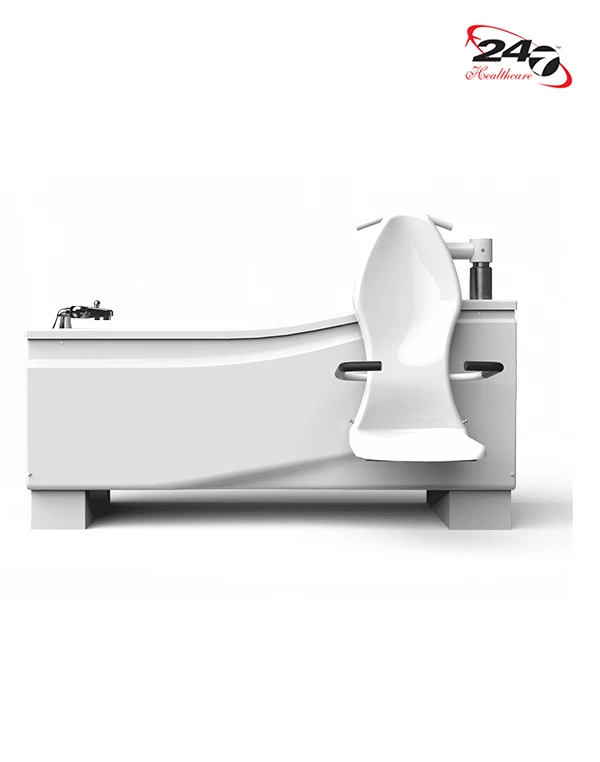

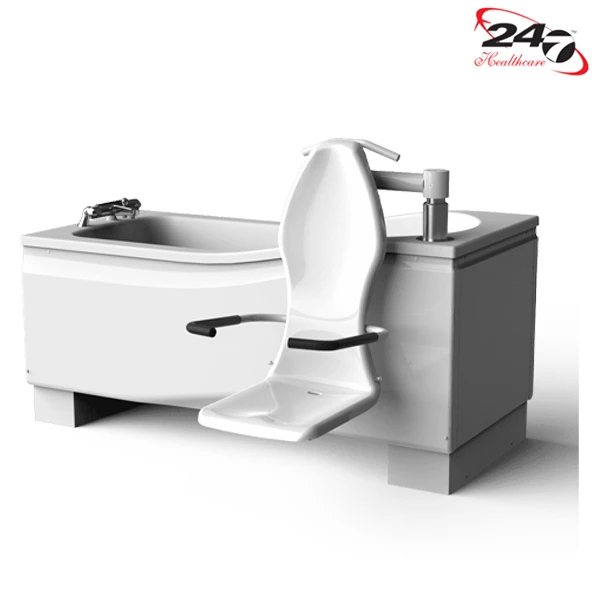

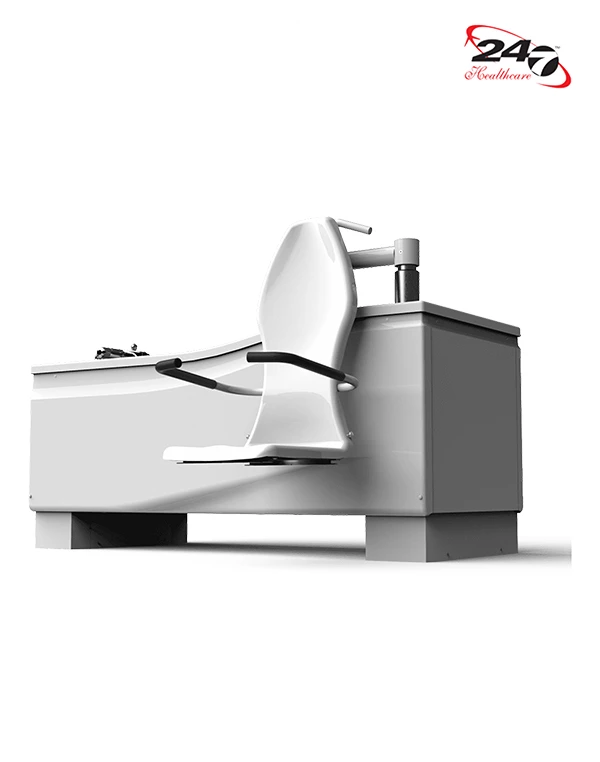

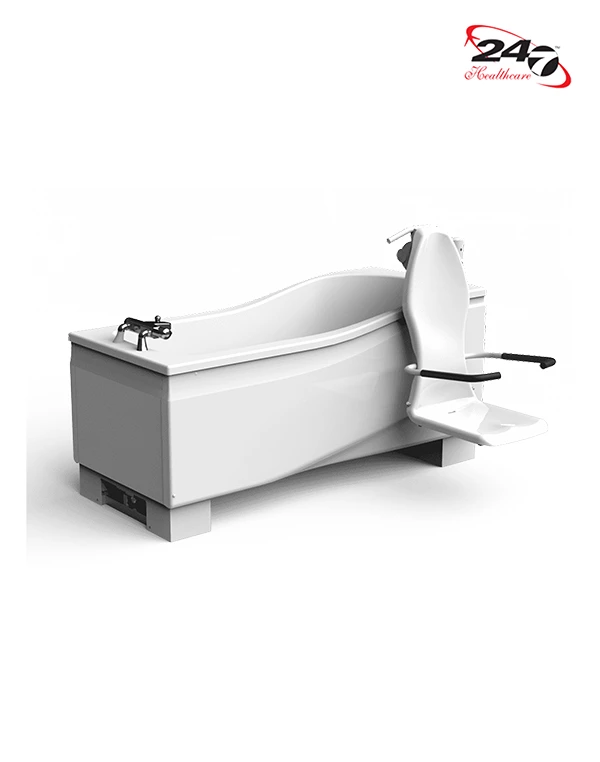

The Astor Matira height adjustable bath with powered transfer seat system is designed to offer safe, secure and comfortable independent and assisted bathing. The fully powered transfer seat and bath are operated at the touch of a button and are extremely quiet and smooth offering a safe and easy entry and exit from the bath for those who need a little assistance but do not need to be fully hoisted.

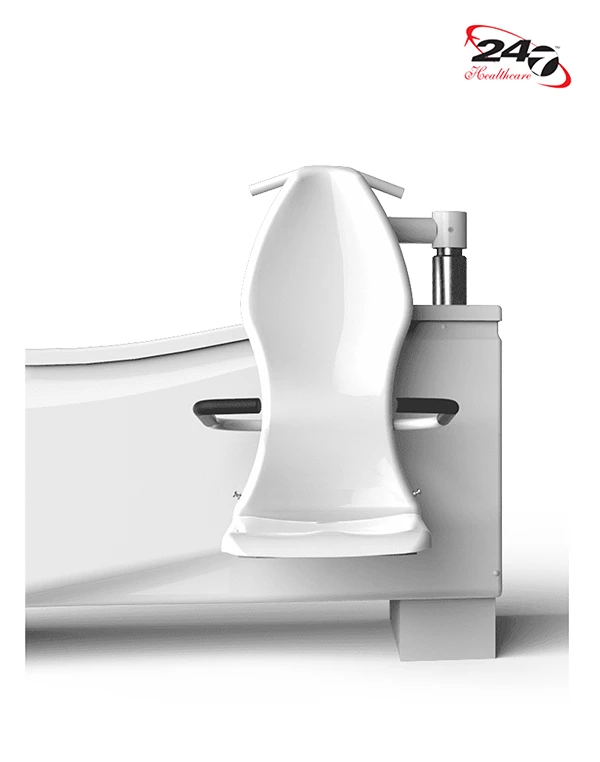

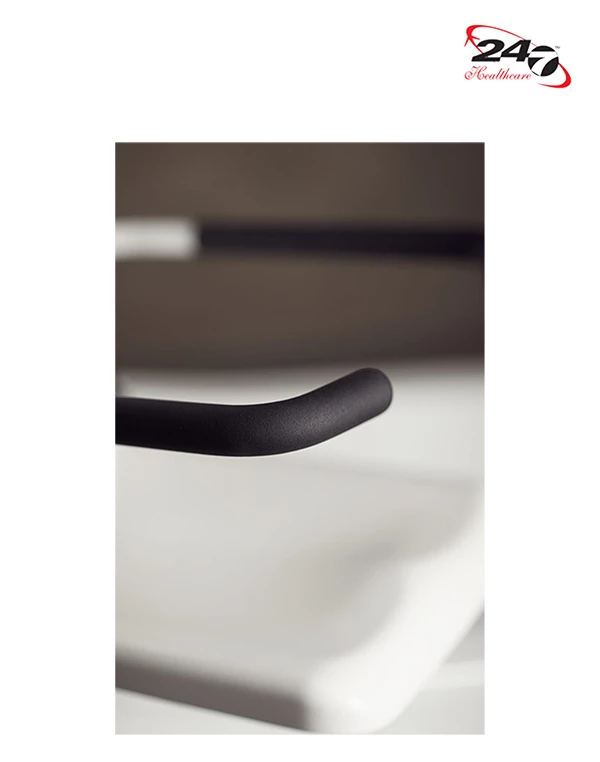

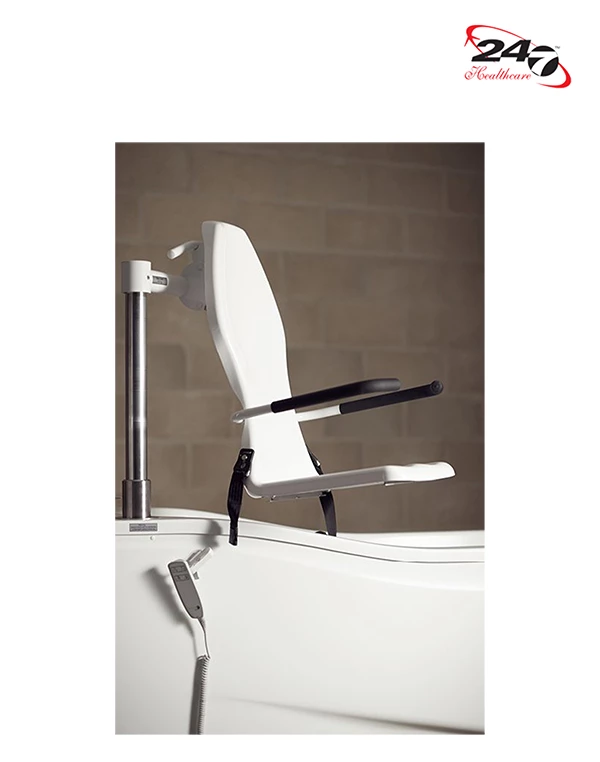

The integrated powered seat with its lap strap and nursing arms enables bathers to transfer safely and comfortably. Obstacle sensors ensure the motion halts if necessary. When in use, the transfer seat locks securely to the lifting arm and fold away arms on the seat give the bather extra comfort and reassurance. For extra bathing assistance, the seat can quickly be detached from the bath and positioned on an optional transfer frame enabling easy bathroom to bedroom transfers. When the seat is removed, a headrest can be added to the seat post to give versatility of usage perfect for the whole family.

The 1,600mm option of the Astor Matira Bath is ideal for small bathrooms and en-suites, with the unique internal shape giving the bather a spacious but supported bathing experience. Or if you have the space we have the 1700mm version available. The smooth lines also allow for easier cleaning and superior hygiene control.

With a proprietary bearing system, multi-layer GRP panels, twin gel-coated seat and high grade 304 stainless steel parts, the Astor Matira has been built to the highest standard and is designed for longevity.

As with all Astor Bannerman assisted baths, the Matira bath has a battery backup in the event of a power failure and access for floor and ceiling hoists if required.

  • SWL 150 kg  /24 st
  • Detachable powered seat with lap strap, nursing arms, obstacle sensors and a transfer chassis
  • Choice of taps with TMV2 or TMV3 controls
  • Battery backup
  • Length Options: 1600 mm or 1700 mm (x 750 mm)
  • Working height range: 680 mm-1080 mm
  • Air spa
  • Bluetooth sound system
  • Colour changing light therapy system
  • Commode seat
  • Range of service & warranty packages – Please ask for further details

Many different models are suitable for a variety of users. Contact us for impartial advice on which particular product could benefit you.

Astor Matira Specifications

Dimensions and weights
Length:                                 1600 mm or 1700 mm
Width:                                   750 mm
Width with chair out:             1420 mm
Min stroke height:                 780 mm
Max stroke height:                1080 mm
Weight without water 1600:  approx. 118 kg
Weight without water 1700:  approx. 133 kg
Filled capacity 1600:            approx. 215 l
Filled capacity 1700:            approx. 195 l
Seat Maximum Load:           max. 150 kg
Max Working Load 1600:     478 kg (product, patient and water)
Max Working Load 1700:     508 kg (product, patient and water)
Electrical Data
Applied Part:                         Type B
Protection Class:                  I
Power connection:                230 V, 50 Hz
Power consumption:             Max. 1.25 kW
DC output:                            24V, 8A
Operating Mode:                  Short-term operation
Duration of treatment:          10%, max. 2 min on & 18 min off
Noise level:                          10 °C to 40 °C
Relative humidity                 30% to 95%, non-condensing
Atmospheric pressure:        800 – 1060 hPa
Minimum:                            1 bar (cold and hot water connection)
Maximum:                            5 bar (cold and hot water connection)
The pressure should be identical for both lines!
Storage and transport
Temperature range:              5 °C to 70 °C
Relative humidity:                10% to 80%, no condensation at 20 °C
Atmospheric pressure:         50kPa – 106 kPa

Additional information



Weight Limit

140kg – 150kg


Air spa, Bluetooth Sound option, Commode seat, compact option, detachable powered seat system, Emergency battery back up, Height adjustable, Lap strap, LED Light System, Range of taps
